Product brief

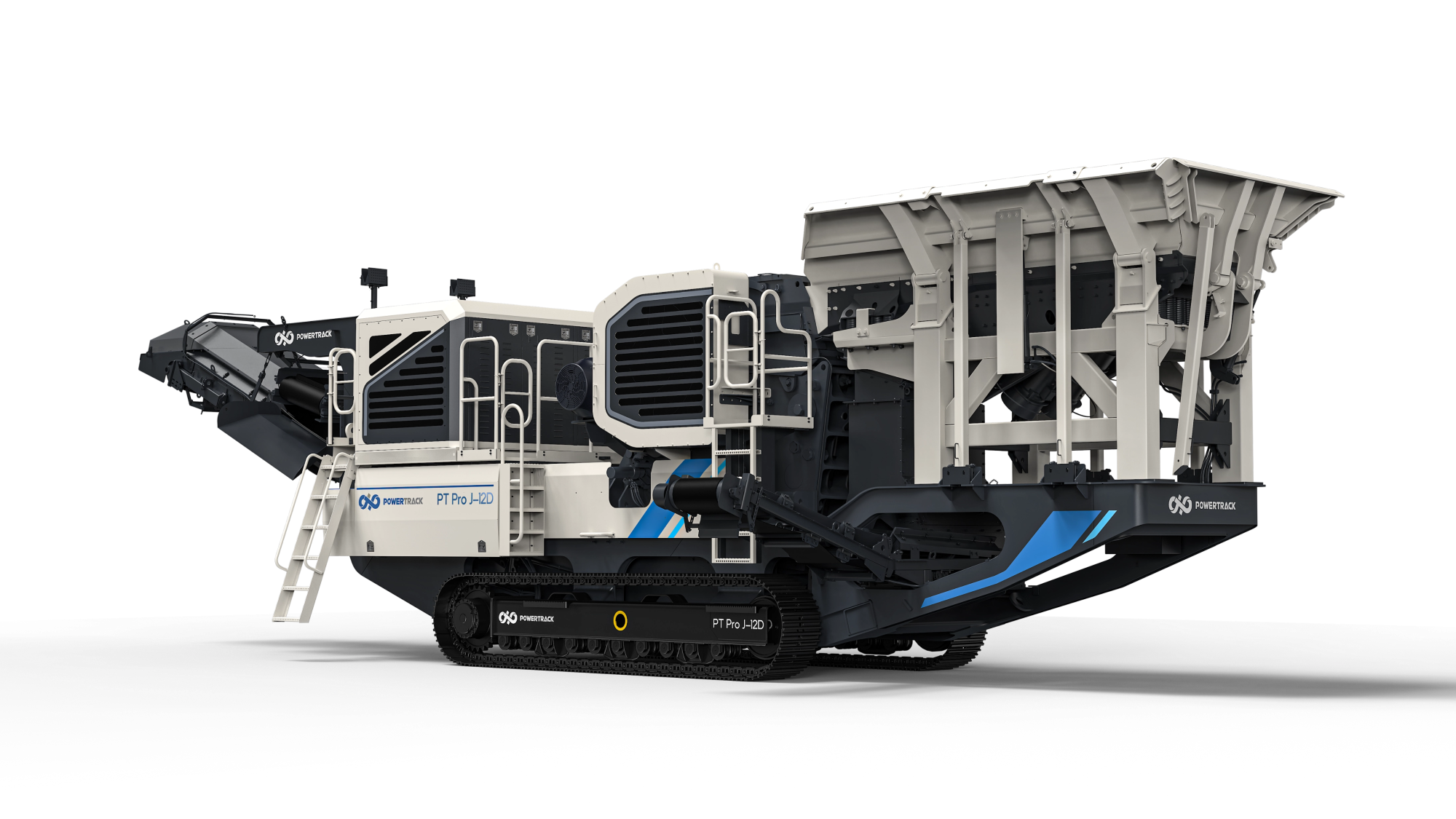

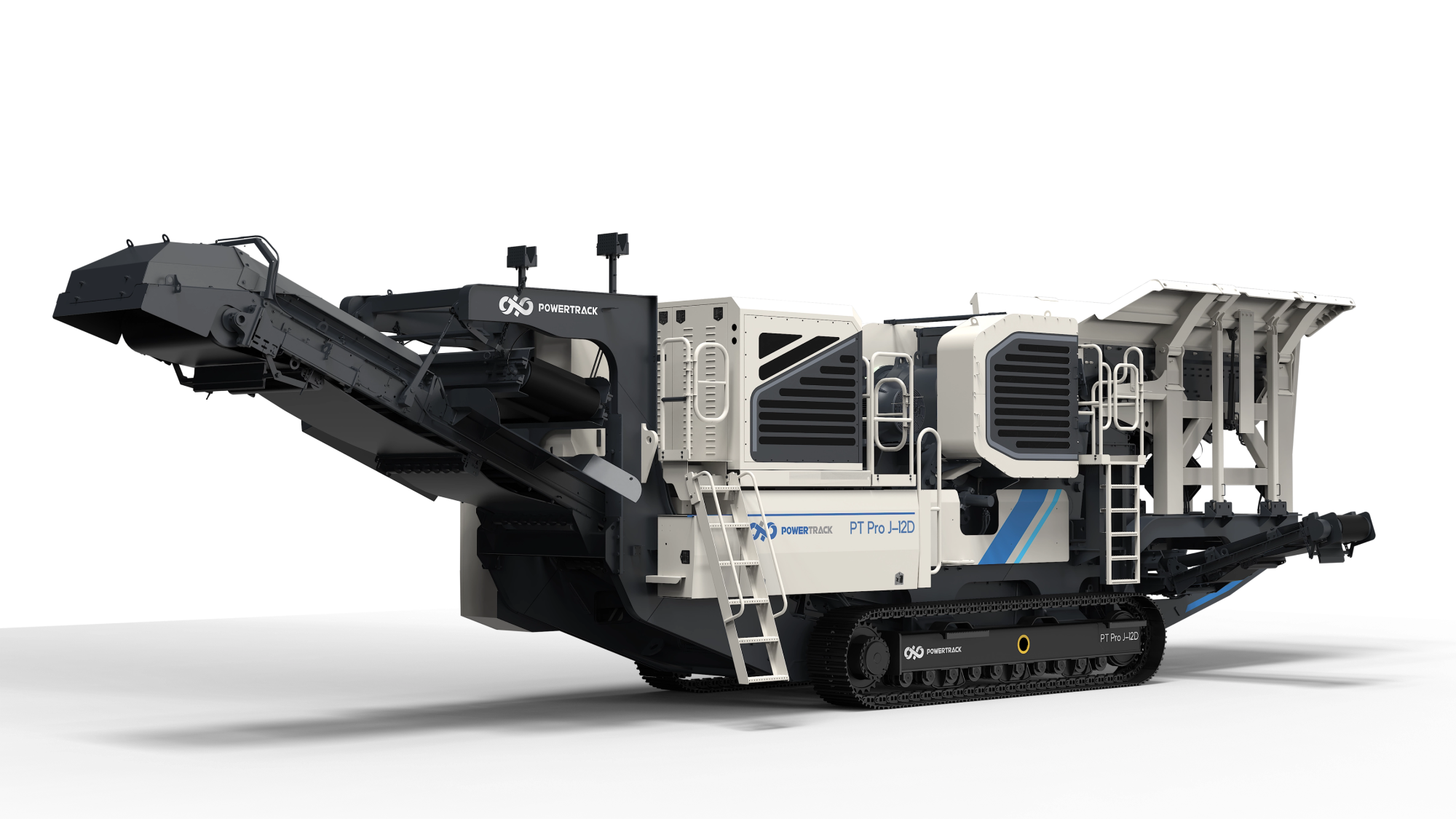

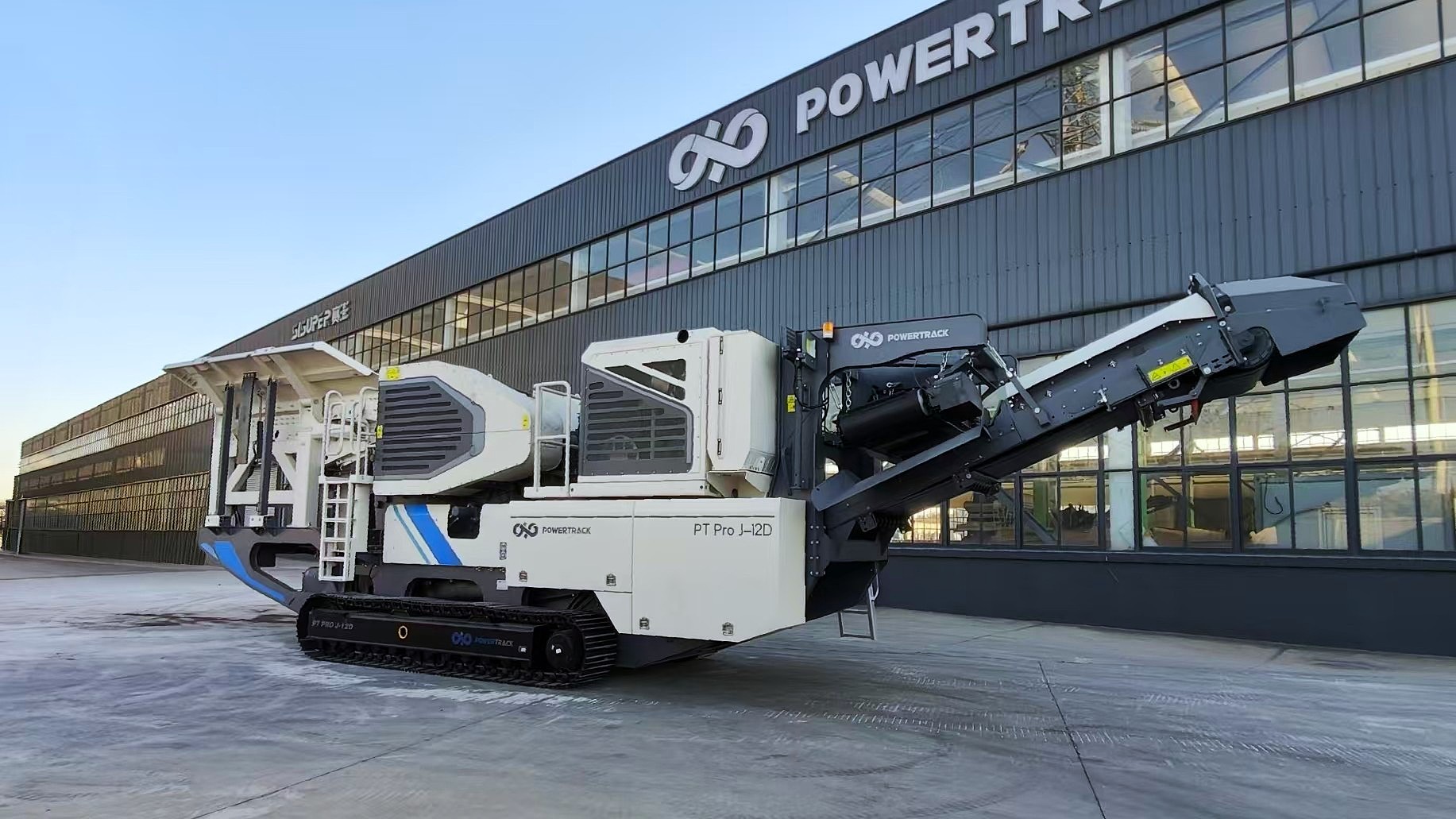

Powertrack mobile jaw crushing unit PT Pro J-12D is a high-performance primary crushing unit, designed for processing various types of materials. It can work alone or in conjunction with secondary crushing unit and screening unit. Its compact size enables quick transportation and moving. The reliable design also simplifies daily maintenance. All functional components are powered by electrici-ty from external power grid or onboard disel genset, bring flexibility in different working conditions.

Power：

195 kW
Capacity：

190 - 650 t/h
Weight：

60 000 kg

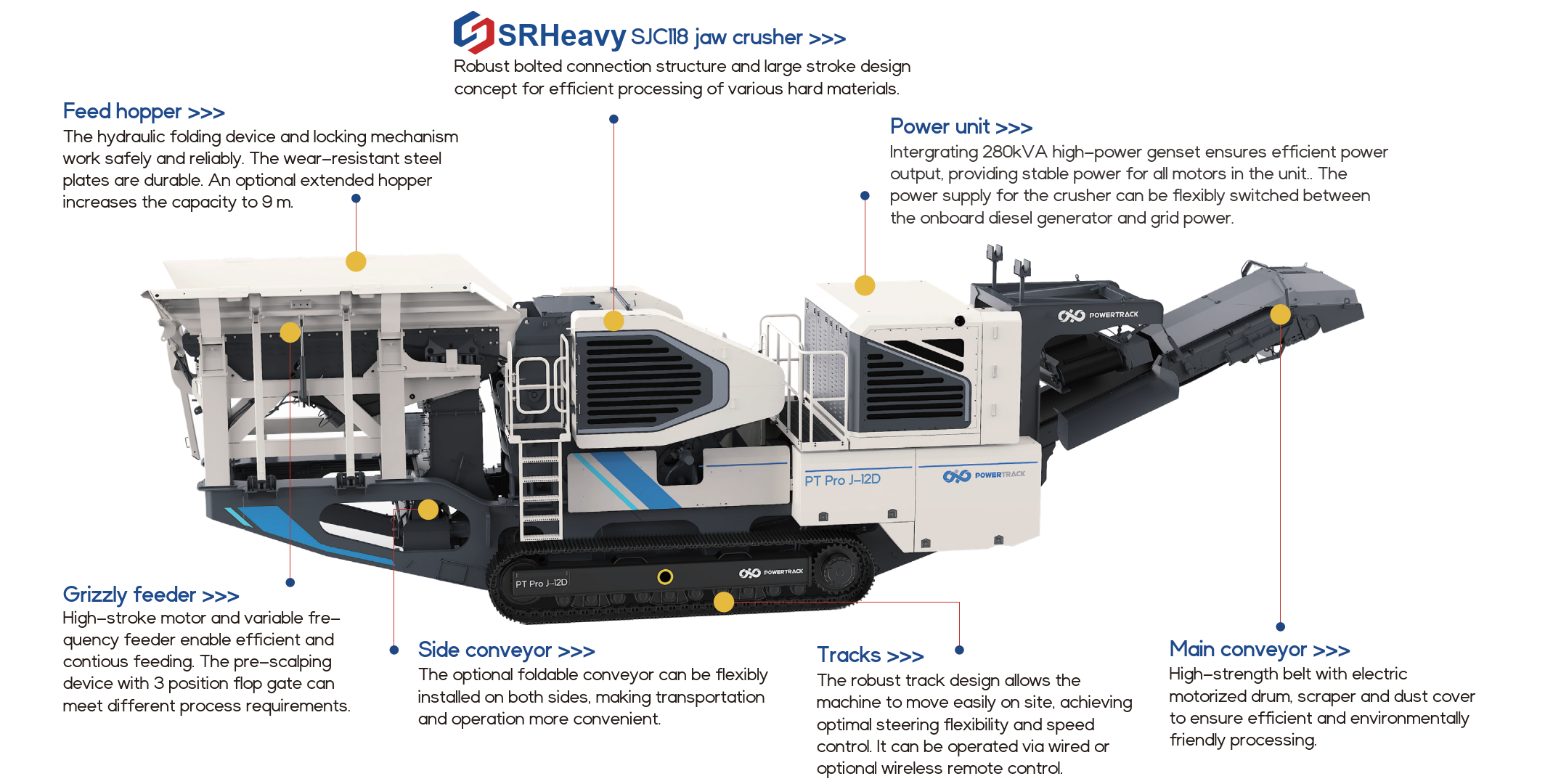

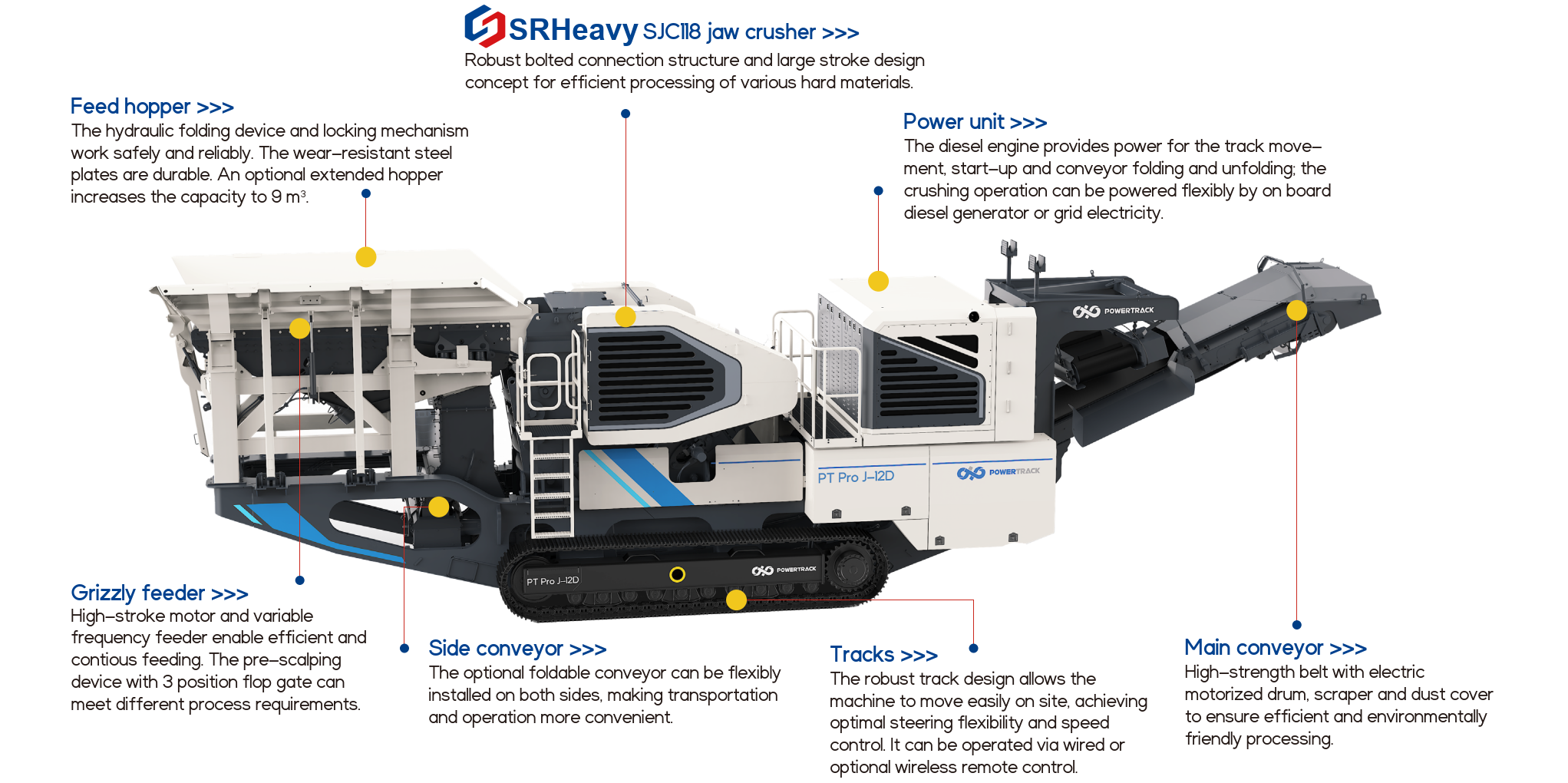

Machine Advantages

Unique advantages

01
Compact size with integrated feeding, pre-scalping and crushing units.
02
Dual power drive to switch power supply between diesel and electric.
03
Variable frequency feeder and level sensor for automatic and optimized control of the feeding according to crusher cavity level.
04
SRHeavy® jaw crusher: large feed opening, big stroke, high output.
05
Unique electric control to reduce the starting current and improve lifetime of VFD.
06
Push-button operation with easy maintenance.

Main parameters

Power type	Dual power
Capacity	190 - 650 t/h
Driving power	195 kW
Power unit	Engine: Cummins, 272 kW Generator: Mecc Alte
Transportation dimensions L x W x H	16 000 × 3 050 × 3 800 mm
Working dimensions L x W x H	16 000 × 4 900 × 4 300 mm
Weight	60 000 kg
Feed opening	1 100 × 850 mm
Maximum recommended feed size	680 mm
Crushing power	160 kW

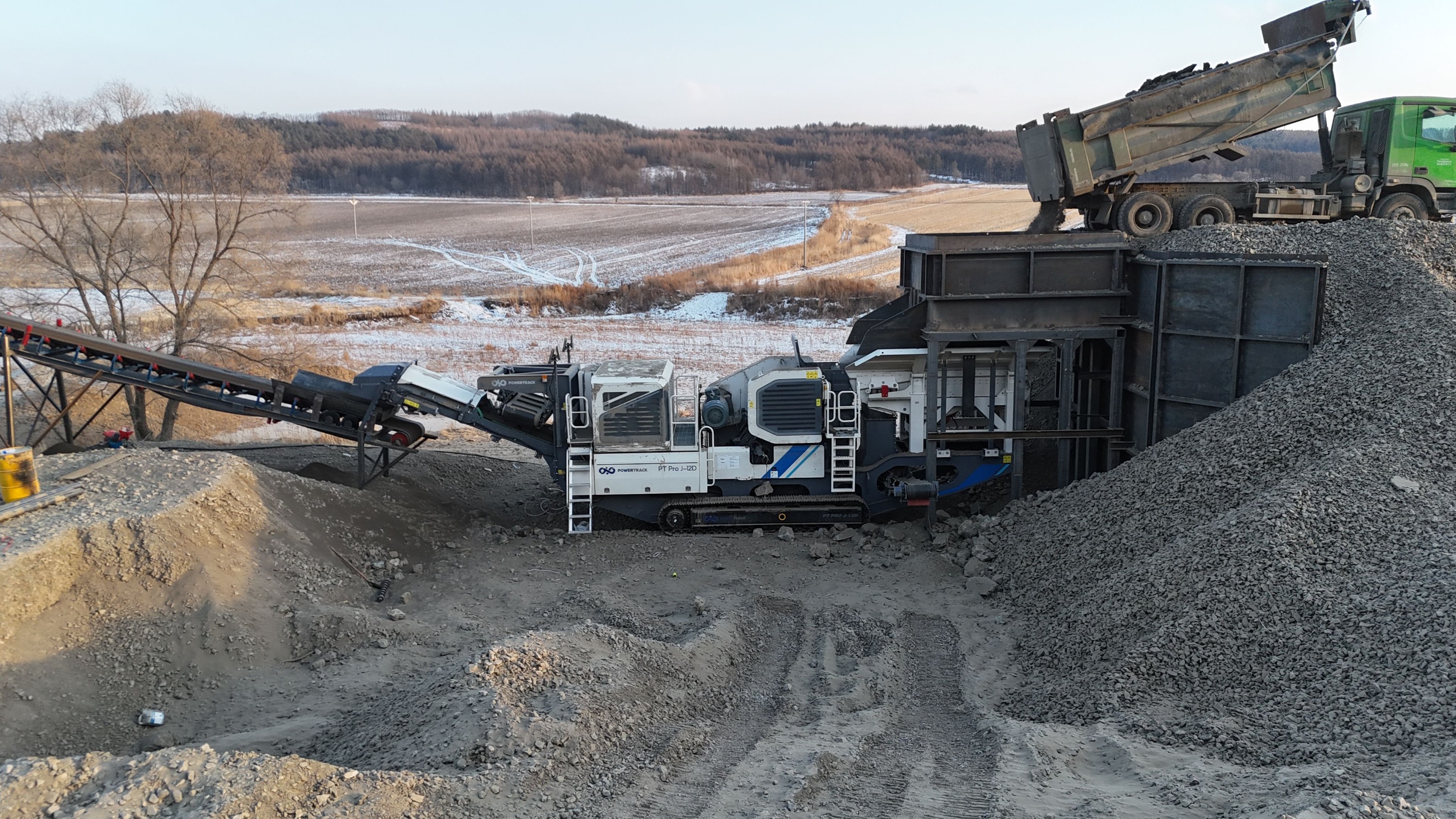

Applications

Widely used in the fields of mining and aggregates. Especially suitable for primary crushing of high hardness of natural stone, as well as reycling materials.

Construction

Aggregates

Contractor
